6 Snow Melt Date

6.1 Intro

Since snow fraction (NDSI) and snow water equivalent (SWE) results were largely inconclusive for scope of project Here we look to see if any information can be gained by trying to understand snow melt date.
This document demonstrates a method for extracting date of snow melt at the pixel level and then summarizing this value to different areas of interests
This adapts the Google Earth Engine methods provided by Armstrong et al. (2023)

Code

aoi_adm1 <- c(
    "Takhar",
    "Badakhshan",
    "Badghis",
    "Sar-e-Pul",
    "Faryab"
)

Code

library(rgee)
library(sf)
library(tidyverse)
library(gghdx)
library(glue)
library(ggiraph)
library(glue)
library(tidyrgee)

Code

library(rgee)
ee_check()
ee_Initialize()

basin_levels <- c("4" = 4, "5" = 5, "6" = 6, "7" = 7)

img_dem <- ee$Image("NASA/NASADEM_HGT/001")$select("elevation")
terrain <- ee$Terrain$products(img_dem)


fc_river <- ee$FeatureCollection("WWF/HydroSHEDS/v1/FreeFlowingRivers")
img_river <- ee$Image()$byte()$paint(fc_river, "RIV_ORD", 2)
adm1_fc <- ee$FeatureCollection("FAO/GAUL_SIMPLIFIED_500m/2015/level1")
adm0_fc <- ee$FeatureCollection("FAO/GAUL_SIMPLIFIED_500m/2015/level0")

# filter adm1 to get only those in Afghanistan
adm1_afghanistan <- adm1_fc$filter(ee$Filter$eq("ADM0_NAME", "Afghanistan"))
adm0_afghanistan <- adm0_fc$filter(ee$Filter$eq("ADM0_NAME", "Afghanistan"))
fc_faryab <- adm1_afghanistan$filter(ee$Filter$eq("ADM1_NAME", "Faryab"))

Map$centerObject(fc_faryab, 7)

l_hybas <- map(basin_levels, \(x)ee$FeatureCollection(paste0("WWF/HydroSHEDS/v1/Basins/hybas_", x)))
riv_vis <- list(
    min = 1,
    max = 10,
    palette = list("#08519c", "#3182bd", "#6baed6", "#bdd7e7", "#eff3ff")
)
hybas_vis <- list(
    color = "#808080",
    strokeWidth = 1
)

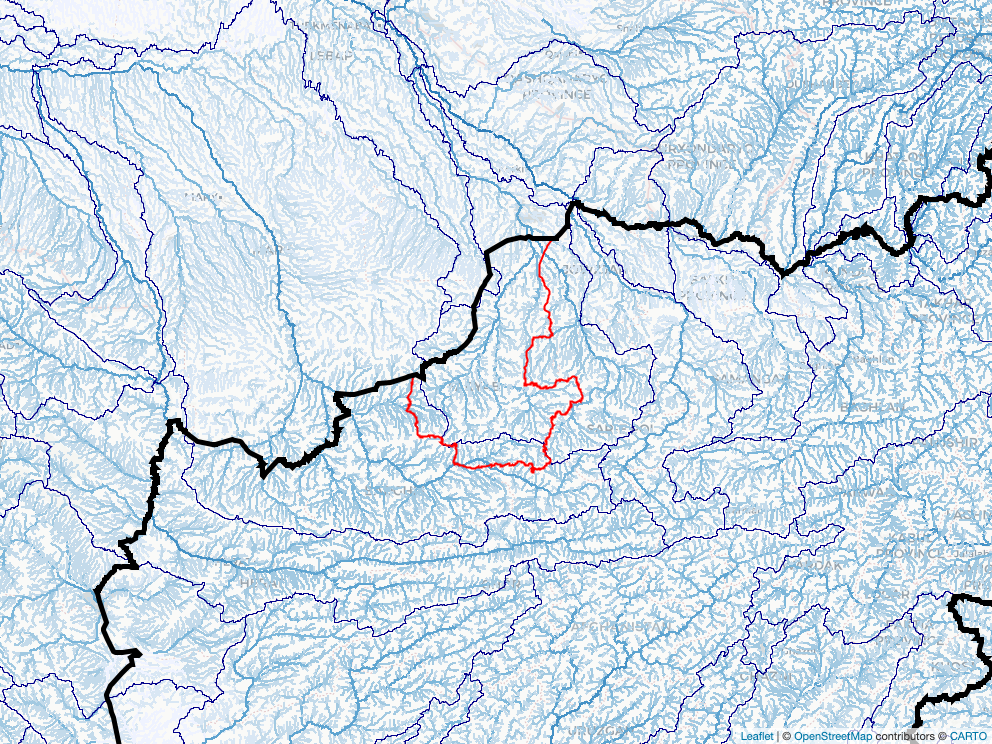

6.2 Overview of AOI & hydrology

Code

m_hydro <- Map$addLayer(img_river, riv_vis, "hydroshed rivers") +
    Map$addLayer(l_hybas$`5`$style(fillColor = "#00000000", color = "darkblue", width = 1)) +
    Map$addLayer(fc_faryab$style(fillColor = "#00000000", color = "red")) +
    Map$addLayer(adm0_afghanistan$style(fillColor = "#00000000", color = "black", width = 5))
# mapview::mapshot2(x =m_hydro,file ="outputs/aoi_hydro.png", remove_url =TRUE )

6.3 Snow Masking

The methodology uses MODIS NDSI snow fraction. An requires us to define an area mask. For the mask we want to consider pixels that represent ephemeral/seasonal snow. We want pixels that consistently get winter snow, but do not have snow year round or nearly year round.

The methodology by Armstrong et al. (2023) does this by choosing a single year and using the temporal pixel level snow dynamics of that year to create a mask that used across all years of analysis. For comparative purposes we implement this methodology and another which rather than using a single year uses a composite derivative to create the mask.

In order to create the single year mask we have to select a year that is representative of general snow fall. To do this we look at the yearly distributions of winter precipitation (Dec - Feb) Figure 5.1 and select a year close to the median. For the purpose of this analysis/chapter we focus on Faryab and select the year 2006

6.3.1 Method 1: Single Year Mask

Code

df_chirps <- blob_connect$read_blob_file("DF_ADM1_CHIRPS") |>
    filter(
        ADM1_NAME %in% aoi_adm1
    )

df_chirps_winter <- df_chirps |>
    mutate(
        mo = month(date)
    ) |>
    filter(
        mo %in% c(12, 1, 2)
    ) |>
    mutate(
        yr_adj = ifelse(mo == 1, year(date), year(date) + 1)
    ) |>
    arrange(ADM1_NAME, date) |>
    filter(yr_adj > 1981) |>
    group_by(
        ADM0_NAME, ADM1_NAME, yr_adj
    ) |>
    summarise(
        value = sum(value)
    ) |>
    mutate(
        long_term_mean = mean(value),
        long_term_median = median(value),
        diff = abs(value - long_term_median),
        # min_diff = diff== min(diff),
        min_diff = diff %in% diff[which(diff %in% sort(diff)[1:4])]
    )


p_chirps_winter <- df_chirps_winter |>
    ggplot(
        aes(x = ADM1_NAME, y = value)
    ) +
    geom_boxplot(color = "grey", fill = "black") +
    geom_jitter_interactive(aes(color = min_diff, tooltip = glue("{yr_adj}"))) +
    ggrepel::geom_text_repel(
        data = df_chirps_winter |>
            filter(min_diff),
        aes(x = ADM1_NAME, y = value, label = yr_adj), color = "red", size = 4
    ) +
    labs(
        title = "Dec-Feb Precipitation Distributions"
    ) +
    theme(
        axis.title.x = element_blank(),
        legend.position = "none",
        legend.title = element_blank()
    )
girafe(ggobj = p_chirps_winter)

Figure 6.2

Below we calculate the mask components independently soley for visualization/communication purposes.

Code

#|eval: false

# Define complete collection
complete_col <- ee$ImageCollection("MODIS/061/MOD10A1")$
    select("NDSI_Snow_Cover")

create water mask
create mask w/ pixels >= 10 % NDSI for at least 14 days of year (2006)
create mask w/ pixels >= 10 % NDSI no more than 120 days (3 months) of year
multiply all masks together to create analysis mask

Code

# Define water mask
water_mask <- ee$Image("MODIS/MOD44W/MOD44W_005_2000_02_24")$
    select("water_mask")$Not()

# Define snow cover ephemeral mask
snow_cover_ephem <- complete_col$
    filterDate("2006-01-01", "2007-01-01")$
    map(function(img) img$gte(10))$
    sum()$
    gte(14) # at least 2 weeks > 10 %

# Define snow cover constraint mask
snow_cover_const <- complete_col$
    filterDate("2006-01-01", "2007-01-01")$
    map(function(img) img$gte(10))$
    sum()$
    lte(120) # if LTE 200 days 1, otherwise 0

analysis_mask_2006 <- water_mask$
    multiply(snow_cover_ephem)$
    multiply(snow_cover_const)



snow_gtex <- complete_col$
    filterDate("2006-01-01", "2007-01-01")$
    map(function(img) img$gte(10))$
    sum()$
    gt(120)

#
snow_gtex <- snow_gtex$mask(snow_gtex)

snow_cover_ephem_masked <- snow_cover_ephem$mask(snow_cover_ephem)


m_snow_masks <- Map$addLayer(
    snow_cover_ephem_masked, list(palette = c("cyan")), "ephemeral_snow"
) +
    Map$addLayer(snow_gtex, list(palette = c("blue")), "snow_all_time") +
    Map$addLayer(fc_faryab$style(fillColor = "#00000000", color = "red"))


blob_mapshot <- function(x, stage = "dev", container = "projects", name) {
    mapview::mapshot2(x = x, file = tf <- tempfile(fileext = ".png"), remove_url = TRUE)
    AzureStor::upload_blob(
        src = tf,
        dest = name,
        container = cumulus::blob_containers(stage = stage)[[container]]
    )
}

blob_mapshot(
    m_snow_masks,
    stage = "dev",
    container = "projects",
    name = "ds-aa-afg-drought/processed/images/snow_masks_y2006_14e_120c_14e_120c.png"
)

mapview::mapshot2(x = m_snow_masks, file = "../outputs/snow_masks_y2006_14e_120c_14e_120c.png", remove_url = TRUE)

analysis_mask_masked <- analysis_mask_2006$mask(analysis_mask_2006)

m_analysis_mask <- Map$addLayer(analysis_mask_masked, list(palette = "black"), "analysis_mask") +
    Map$addLayer(fc_faryab$style(fillColor = "#00000000", color = "red"))

mapview::mapshot2(x = m_analysis_mask, file = "../outputs/analysis_masks_y2006_14e_120c_14e_120c.png", remove_url = TRUE)
blob_mapshot(
    m_analysis_mask,
    stage = "dev",
    container = "projects",
    name = "ds-aa-afg-drought/processed/images/analysis_masks_y2006_14e_120c_14e_120c.png"
)

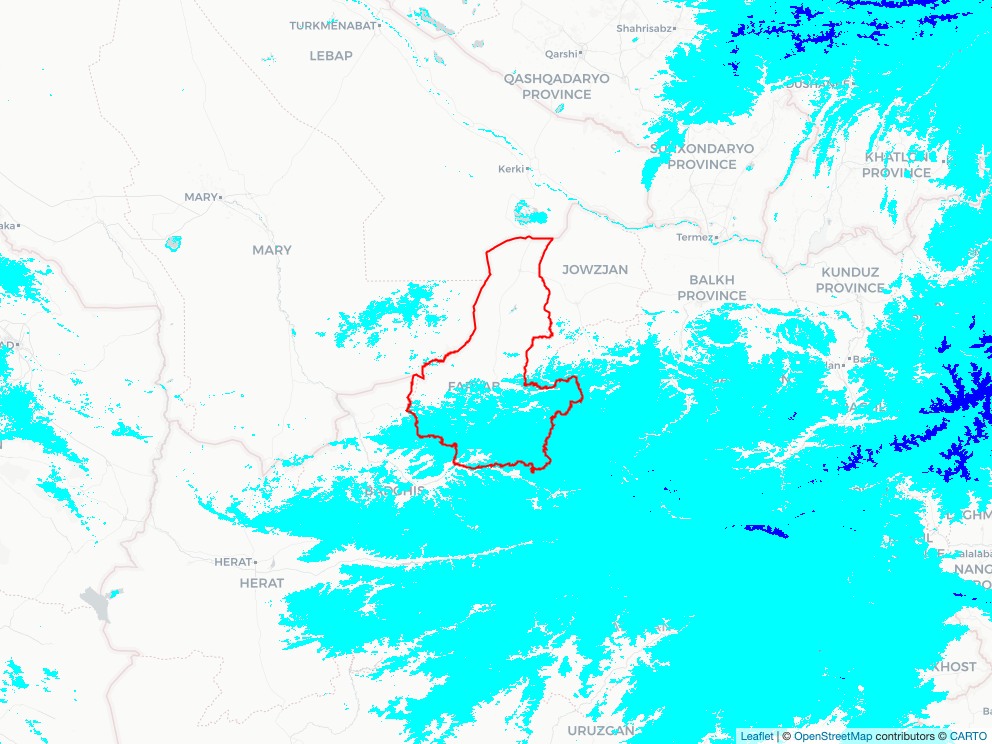

In light cyan blue you see the areas that has > 10% snow fall for more than 2 weeks.
In dark blue you see the areas that had >10 % snow fall for more than three months

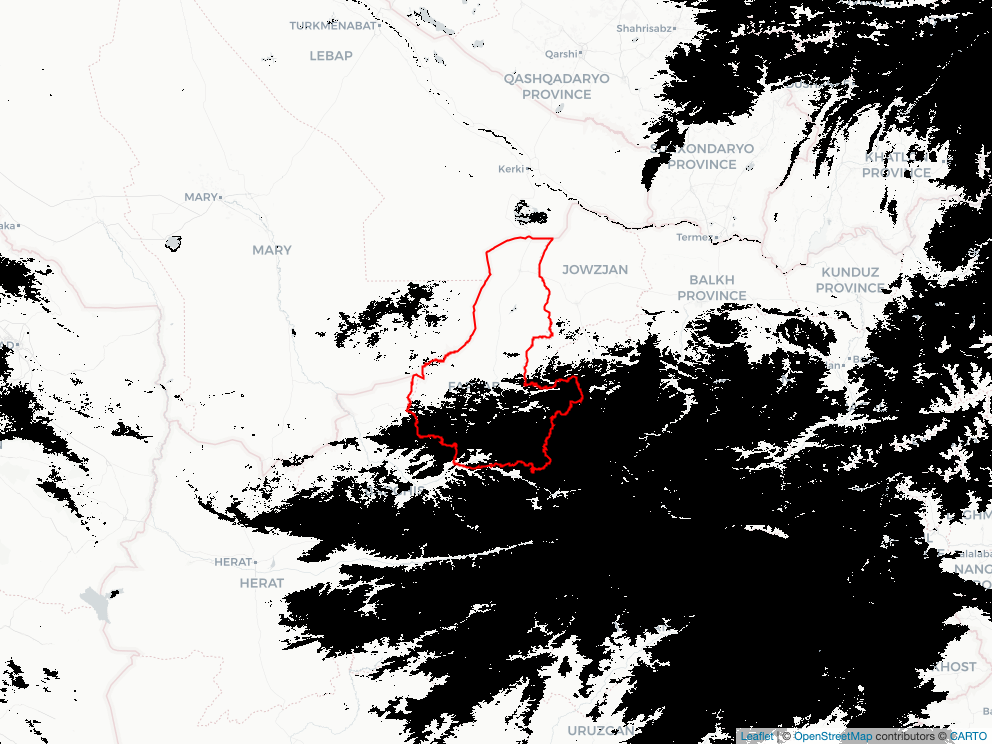

We multiply these values together to get our analysis mask

6.3.2 Method 2: Multi-year composite mask

After experimenting w/ different years used for masking we realize that the year chosen does have a significant impact on final results. Additionally the method is not generalize able to multiple AOIs as seen in Figure 6.2 , different areas have different years that would be considered more or less “typical”/“representative”
Therefore, the premise of this composite method is to iterate through each year on record creating a mask for each year using the same methodology as above, but then finally compositing all the masks to retain a new mask that represents the area w/ 70 % agreement between all masks.

Code

# The example above uses 1 "typical" year to define mask, but it seems like this decision does have a big impact on the results
create_snow_masks <- function(year) {
    water_mask <- ee$Image("MODIS/MOD44W/MOD44W_005_2000_02_24")$
        select("water_mask")$Not()

    start <- ee$Date$fromYMD(year, 1, 1)
    end <- ee$Date$fromYMD(year, 12, 31)

    modis_snow <- ee$ImageCollection("MODIS/061/MOD10A1")$
        select("NDSI_Snow_Cover")

    # Filter MODIS snow cover dataset for the given year
    snow_lte_120d <- modis_snow$
        filterDate(start, end)$
        map(function(img) img$gte(10))$
        sum()$
        lte(120)

    snow_gte_14d <- modis_snow$
        filterDate(start, end)$
        map(function(img) img$gte(10))$
        sum()$
        gte(14)

    water_mask$multiply(snow_gte_14d)$
        multiply(snow_lte_120d)
}

start_year <- 2000
end_year <- 2024
years <- ee$List$sequence(start_year, end_year)

yearly_analysis_masks <- years$map(ee_utils_pyfunc(function(year) {
    create_snow_masks(year)
}))

num_years <- length(start_year:end_year)

# Aggregate across years to calculate the percentage of agreement

composite_analysis_mask <- ee$ImageCollection$fromImages(yearly_analysis_masks)$
    sum()$
    divide(num_years)$
    gte(0.7) # Agreement threshold: >70% of years

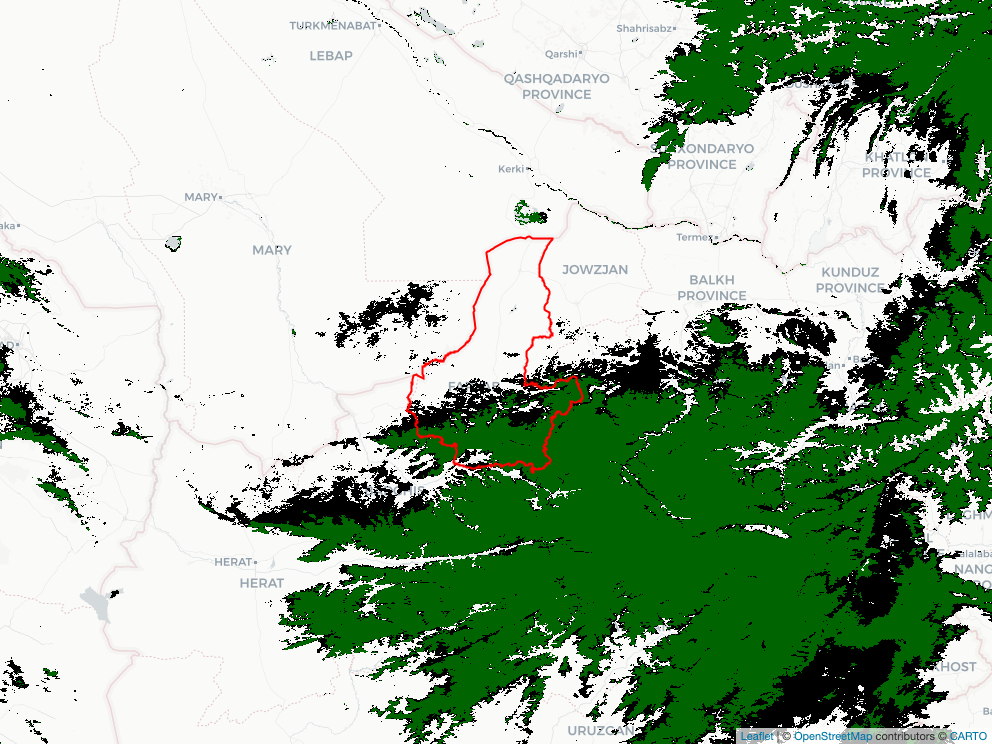

below we see the two masking methods compared. Dark green represents the composite map wheras black represents the single-year mask (2006)

Code

vis_params_composite <- list(min = 0, max = 1, palette = c("white", "darkgreen"))

m_mask_comparison <-
    Map$addLayer(analysis_mask_masked, list(palette = "black"), "Analysis Mask 2006") +
    Map$addLayer(composite_analysis_mask$mask(composite_analysis_mask), vis_params_composite, "Composite Ephemeral") +
    Map$addLayer(fc_faryab$style(fillColor = "#00000000", color = "red"))

6.4 Calculate Date Snow Disappearance

Below we calculate the first day-of-year (DOY) of now snow at the pixel level using both the 2006 single year mask and the composite mask

Code

# Define constants
# start_doy <- 1
# start_year <- 2000
# end_year <- 2024

# Define function to add date bands
add_date_bands <- function(img) {
    # Get image date
    date <- img$date()

    # Get calendar day-of-year
    cal_doy <- date$getRelative("day", "year")

    # Get relative day-of-year
    # rel_doy <- date$difference(ee$Date(start_date), 'day')

    # Get the date as milliseconds from Unix epoch
    millis <- date$millis()

    # Add date bands to the image
    date_bands <- ee$Image$constant(
        c(
            cal_doy,
            # rel_doy,
            millis,
            start_year
        )
    )$
        rename(
        c(
            "calDoy",
            # "relDoy",
            "millis", "year"
        )
    )$
        cast(list(
        calDoy = "int",
        # relDoy = "int",
        millis = "long", year = "int"
    ))

    img$addBands(date_bands)$set(list(millis = millis))
}

Code

annual_snow_disappearance <- function(start_year, end_year, mask_selection) {
    years <- ee$List$sequence(start_year, end_year)
    annual_list <- years$map(ee_utils_pyfunc(function(year) {
        # Define date range for the year
        start_date <- ee$Date$fromYMD(year, 1, 1)$advance(1 - 1, "day") # 1 - 1 because first 1 used to be start_doy - can be used when we don't want to start Jan 1.
        end_date <- start_date$advance(250, "day")$advance(1, "day")

        sys_date <- ee$Date$fromYMD(year, 1, 1)
        # Filter collection by year
        year_col <- complete_col$filterDate(start_date, end_date)

        # Generate no-snow image
        no_snow_img <- year_col$
            map(add_date_bands)$
            sort("millis")$
            reduce(ee$Reducer$min(
            4
        ))$
            rename(c(
            "snowCover",
            "calDoy",
            "millis", "year"
        ))$
            updateMask(mask_selection)$
            set("year", year)$
            set("system:time_start", sys_date)

        no_snow_img$updateMask(no_snow_img$select("snowCover")$eq(0))
    }))
    ee$ImageCollection$fromImages(annual_list)
}
annual_col_composite <- annual_snow_disappearance(start_year = 2000, end_year = 2024, mask_selection = composite_analysis_mask)
annual_col_2006 <- annual_snow_disappearance(start_year = 2000, end_year = 2024, mask_selection = analysis_mask_2006)

6.4.1 Snow Melt Map

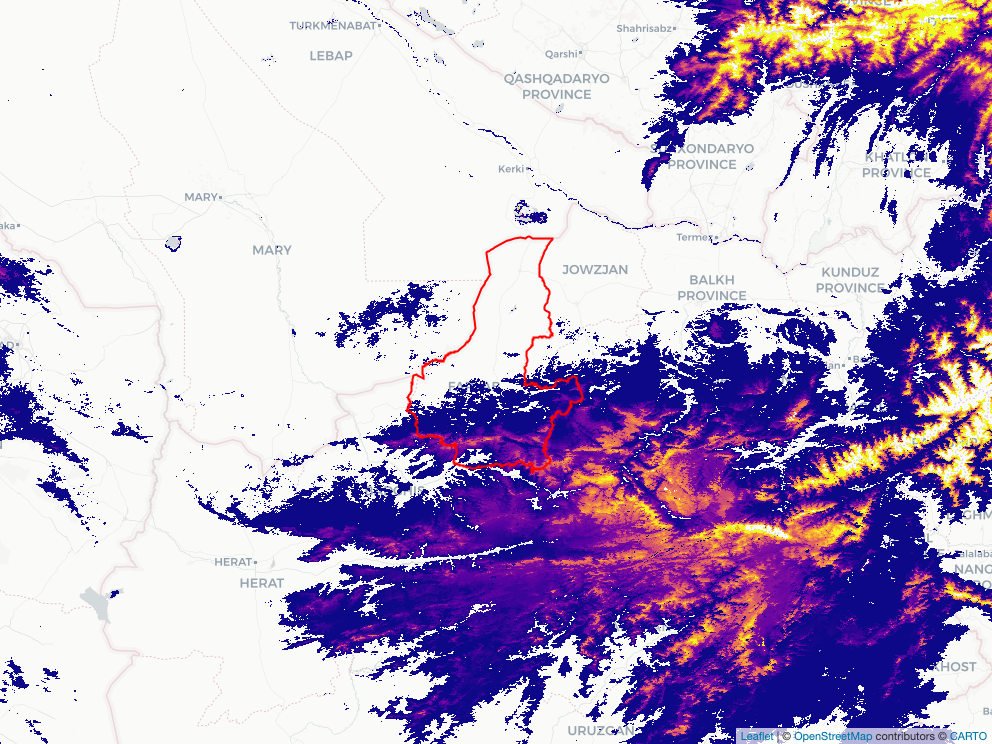

For the purpose of map visualization we just map the DOY of snow disappearance using the method 1 mask (single year)
Below you see the our analysis mask, AOI, and a raster colored by approximate date of snow disappearance in 2023 where yellow colors represent later snow melt dates (higher altitudes) and darker blue colors are earlier snow melt dates

Code

# Define visualization arguments
viz_doy <- list(
    bands = c("calDoy"),
    min = 50,
    max = 150,
    palette = c("#0D0887", "#5B02A3", "#9A179B", "#CB4678", "#EB7852", "#FBB32F", "#F0F921")
)

# Visualize a specific year

first_day_no_snow_2023 <- annual_col_2006$filter(ee$Filter$eq("year", 2023))$first()
first_day_no_snow_2024 <- annual_col_2006$filter(ee$Filter$eq("year", 2024))$first()

m_no_snow_2023 <- Map$addLayer(first_day_no_snow_2023, viz_doy, "First day of no snow, 2023") +
    Map$addLayer(fc_faryab$style(fillColor = "#00000000", color = "red"))



m_no_snow_2024 <- Map$addLayer(first_day_no_snow_2024, viz_doy, "First day of no snow, 2024") +
    Map$addLayer(fc_faryab$style(fillColor = "#00000000", color = "red"))

m_no_snow_2023 | m_no_snow_2024

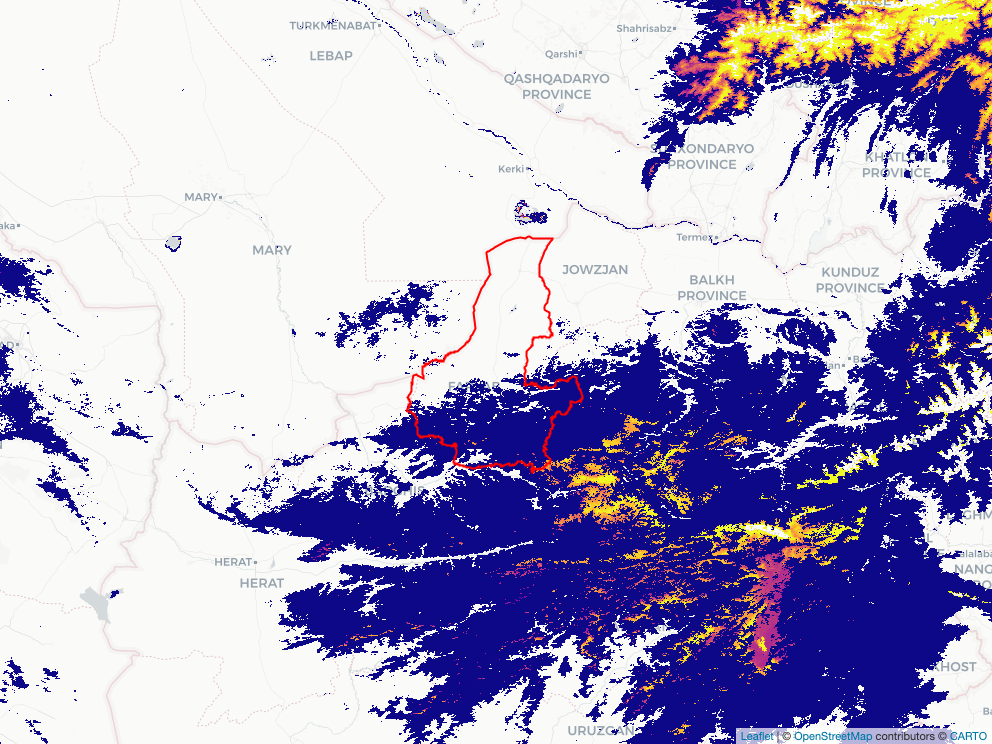

By comparing the above map for 2023 with that for 2024 we can see much earlier snow melt dates in 2024.

6.5 Timeseries Extraction

For each we get the earliest snow melt date per pixel in our AOI and mask and get calculate the average snow melt date in our AOI with zonal statistics.

Code

fc_filtered <- adm1_afghanistan$filter(
    ee$Filter$inList("ADM1_NAME", aoi_adm1)
)

list(
    "m_y2006" = annual_col_2006,
    "m_composite" = annual_col_composite
) |>
    imap(
        \(ict, nmt){
            cat(nmt, "\n")
            tic_annual <- as_tidyee(ict$select("calDoy"))
            df_snowmelt <- ee_extract_tidy(
                x = tic_annual,
                y = fc_filtered,
                stat = "mean",
                scale = 500
            )
            cumulus::blob_write(
                df_snowmelt,
                stage = "dev",
                name = glue("ds-aa-afg-drought/processed/vector/modis_first_day_no_snow_{nmt}_14e_120c.csv"),
                container = "projects"
            )
        }
    )

We then compare that against both end of may and end of jun VHI and ASI

Code

df_fao <- loaders$load_fao_vegetation_data()
df_fao_wide <- df_fao |>
    mutate(
        mo = month(date, label = TRUE, abbr = TRUE)
    ) |>
    filter(
        dekad == 3,
        month %in% c("05", "06")
    ) |>
    pivot_wider(
        id_cols = c("country", "adm1_code", "adm1_name", "year"),
        values_from = value,
        names_from = c("parameter", "mo")
    ) |>
    rename(
        yr = year
    )

Code

ldf_snow_melt <- list(
    "single_year" = "m_y2006",
    "composite" = "m_composite"
) |>
    map(\(file_id){
        tfn <- glue("ds-aa-afg-drought/processed/vector/modis_first_day_no_snow_{file_id}_14e_120c.csv")
        cumulus::blob_read(
            tfn,
            stage = "dev"
        )
    })

ldf_snow_fao <- ldf_snow_melt |>
    map(
        \(dft){
            dft |>
                clean_names() |>
                filter(
                    adm1_name %in% aoi_adm1
                ) |>
                arrange(adm1_code, adm1_name, date) |>
                mutate(
                    yr = year(date),
                    date_melt = date + days(as.integer(value)),
                    doy_melt = value,
                    date_plot = as_date("2023-01-01") + days(as.integer(doy_melt)),
                    label = glue(
                        "year: {yr}
      snow melted: {format(date_melt,'%d %b')}"
                    )
                ) |>
                left_join(
                    df_fao_wide,
                    by = c("adm1_code", "adm1_name", "yr")
                )
        }
    )


lp_snowmelt <- ldf_snow_fao |>
    map(\(dft){
        dft |>
            filter(adm1_name %in% "Faryab") |>
            select(-value) |>
            mutate(
                across(starts_with("asi"), \(x)x / 100)
            ) |>
            pivot_longer(
                cols = asi_May:vhi_Jun,
            ) |>
            ggplot(
                aes(x = date_plot, y = value)
            ) +
            geom_point_interactive(
                aes(tooltip = label)
            ) +
            geom_vline(
                xintercept = c(50, 85)
            ) |>
            labs(
                x = "Approximate day of snow melt",
                y = "ASI end of June"
            ) +
            geom_vline(
                xintercept = as_date(c("2023-04-01", "2023-02-15"))
            ) +
            facet_wrap(~name, scales = "free_y") +
            labs(
                x = "Day of snow disapperance",
                y = "Vegetative Index"
            ) +
            scale_y_continuous(labels = scales::label_percent()) +
            scale_x_date(date_labels = "%e %b", breaks = scales::breaks_width("20 days")) +
            theme(
                axis.text.x = element_text(angle = 90)
            )
    })

6.6 Snow Melt Date By ASI

Method 1 pushes the snow disappearance dates much earlier than method 2.
Under method 1 we see the majority of snow melt dates occurring before 15 Feb
Method 1 we see a lot of snow disappearance occurring after Feb 15

6.6.1 Method 1

Code

girafe(ggobj = lp_snowmelt$single_year)

Figure 6.8

6.6.2 Method 2

Code

girafe(ggobj = lp_snowmelt$composite)

Figure 6.9

Perhaps the median/average “representative” snow year chosen in method 1 (2006) is too heavily weighted towards an earlier snow fall pattern in the 2000’s. Whereas method 2 may do a better job of capturing a change in snowfall dynamic/regime over time.
Method 2 seems more aligned with the general snow fall distribution we see in Figure 5.1
Method 2 seems more generalizeable to expand the AOI.
